Descrizione
| Taglie ordinabili | S, M, L, XL |
|---|---|
| Serie | eOne-Forty |
| Telaio | eONE-FORTY LITE IV, MAT aluminium, 133 STR, 27.5×2.8 max. WHS, 148×12 AST, intube |
| Colore | HIGH CREAM(BLACK) |
| Forcella | SR Suntour ZERON 36, Air, 150 STR, Tapered, 44mm fork offset, 29×2.5 max WHS |
| Ammortizzatore | SR Suntour Edge TR |
| Motore | Shimano EP801 |
| Display | Shimano SC-EN600 |
| Batteria | 750 Wh |
| Deragliatore posteriore | Shimano CUES U6000 , GS |
| Cambio anteriore | Shimano SL -MT500-L |
| Cambio posteriore | Shimano CUES U6000 10 |
| Freno anteriore | Tektro HD-M535, 4 piston |
| Freno posteriore | Tektro HD-M535, 4 piston |
| Catena | Shimano LG500 |
| Pedaliera | Shimano CRE80-12-B, 34 ATC |
| Pacco pignoni | Shimano LG400, 11-48 ATC, 10 GER |
| Movimento centrale | included |
| Cannotto reggisella | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125 SPT – S: 150 SPT – M/L/XL: 200 SPT |
| Sella | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Mozzo anteriore | Shimano TC500-B, 110×15 WHF, 32 SPH, Centerlock |
| Mozzo posteriore | Shimano TC500-HM-B, 148×12 WHR, 32 SPH, Centerlock |
| Copertoni | MAXXIS REKON, 29×2.4, fold, 3C EXO MaxxTerra / MAXXIS REKON, 29×2.4, fold, TR 3C EXO MaxxTerra |
| Cerchi | MERIDA COMP TR II, 110×15 WHF, 148×12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29 |
| Ruote | 29 |
| Manubrio | MERIDA EXPERT eTR, 780 WHB, 20 RHB |
| Attacco manubrio | MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount |
| Serie sterzo | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |

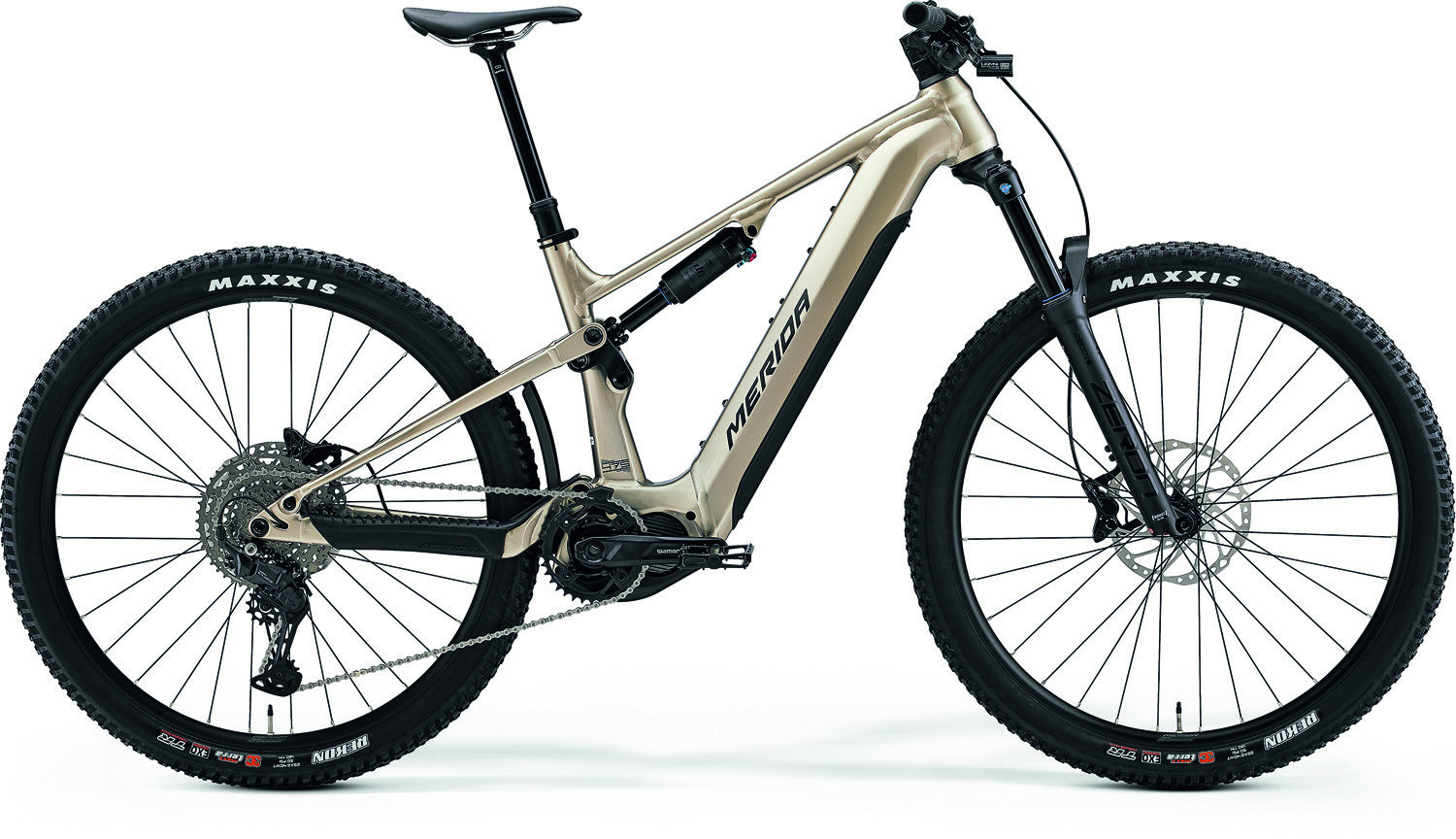

MERIDA eONE-FORTY 475 IV1 HIGH CREAM(BLACK)
